Double Sided Flex PCB
A double-sided flexible PCB is a flexible board that uses a Double-Sided Flex Substrate and undergoes an etching process to have circuit patterns on both sides.. These boards allow for electronic components and circuit connections on both sides, enabling higher circuit density and more complex designs. They are used in applications that require compact and flexible circuit layouts, such as mobile devices, communication equipment, medical devices, and industrial controls.
![flexible circuits-double flexible circuits-double](https://gekunflex.com/wp-content/uploads/2024/04/flexible-circuits-double.webp)
Advantages for double-sided Flex PCB
Advantages of double-sided Flex PCB:
- Flexible substrate allows circuits on both sides, offering design flexibility and space savings.
- Ideal for applications requiring higher circuit density and complex wiring.
- Economical and relatively simple to manufacture.
Advantages of Double-sided Flex PCB:
- Higher circuit density: It has higher circuit density and allows circuits on both sides, enhancing density and functionality.
- Greater wiring flexibility: Double-sided wiring enables more flexible connections between components, allowing for freer design.
In summary, if you have flexible circuits, Rigid-flex PCB, and PCB assembly needs, we can help.
Primary Applications:
- Mobile phones and tablets: Tight space requirements and flexible wiring are crucial.
- Medical devices: require a flexible design to accommodate diverse shapes and sizes of equipment.
- Industrial control systems: Suitable for applications requiring complex wiring and durability in industrial environments.
- Consumer electronics products: Such as smart wearables and household electronics, require compact designs and flexible wiring.
In summary, if you have Double-sided flex PCB needs, we can help.
Our Capabilities
In summary, if you have Double-sided flex PCB needs, we can help.

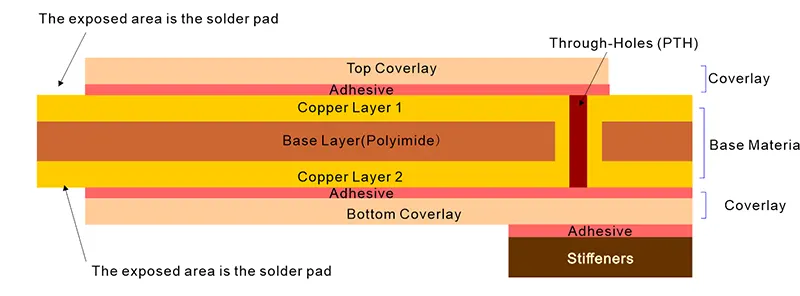

Materials for Flexible circuits
Copper foil ——Flexible printed circuit boards (FPC)’s fundamental material is Copper foil. We press copper foil onto PI film to create the substrate, then etch it to form a conductive pattern, This allows the circuit to transmit signals and electricity efficiently.
——————————————————————————————————————————————————————————————-
Polyimide film—— It has good mechanical properties and high-temperature resistance,
and withstanding the deformation of flexible circuits during use, like bending and stretching, twisting. Additionally, well it maintains stability and reliability in high-temperature environments.
——————————————————————————————————————————————————————————————-
PI Stiffeners, Steel sheet Stiffeners, and FR4 Stiffeners are used in flexible circuits to enhance mechanical strength and stability. They act as supporting materials, laminated on one or both sides of the circuit board, providing extra support and stability. During use, PI Stiffeners reduce bending and twisting, minimizing damage and failure. Additionally, they offer extra protection, preventing damage and wear during operation.
——————————————————————————————————————————————————————————————-
double-sided adhesive—— plays a role in providing mechanical support and stability in flexible circuits, bonding the circuit board firmly with other components to ensure reliability and stability.
In summary, if you have flexible circuit design or flexible printed circuit board needs, we can help.
