Why Flexible PCBs Are Essential in HairMax Laser Cap

A curved laser cap cannot use a flat, rigid board. Therefore, the circuit must flex with the shell. A flexible PCB keeps diode spacing steady across the crown and sides. Also, it removes bulky wire harnesses that can shift during wear. This stable layout helps each laser reach the scalp evenly. In addition, fewer solder joints reduce weak points in a moving device. That reliability matters when the cap bends during daily use.

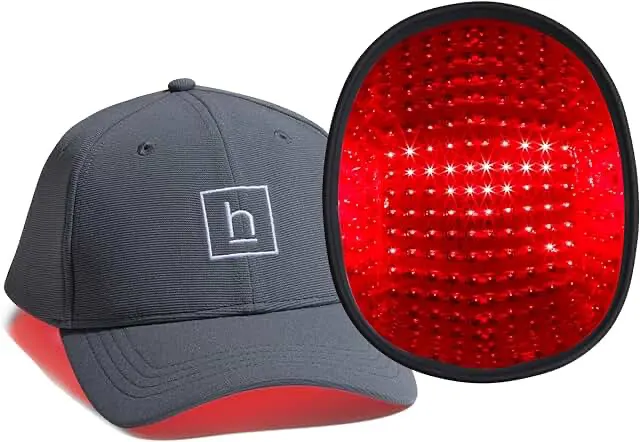

Inside the HairMax Laser Cap200 is a small beanie that contains over 200 medical-grade laser diodes. Fitting so many components into a small space is a big achievement. The circuit board must be very space-efficient and work all the time. There are a few reasons why flexible PCBs fit the requirements for this design style:

• Bendable, form-fitting —the flex circuit conforms to the curvature of the cap so you can maintain your style without feeling like a robot
• Reduced Weight – Flexible PCBs are extremely lightweight and can be used to slim down the size of current wearable designs.
• High-density integration: The flex circuit allows for tight layouts. This helps position the laser diodes accurately across the cap.
• Wearable Use Durability – Flexible PCBs prevent breaking to ensure repeated hair growth treatments in daily use mode.

Technical Advantages of Flexible Circuits in Laser Caps

This combination of lightweight design, electrical stability, and durability makes flexible PCBs the best solution for medical-grade laser hair therapy devices.

Manufacturing Considerations

Producing flexible printed circuit boards for laser hair growth caps requires advanced manufacturing processes:

1. Material Selection- High-quality Polyimide base materials yield heat resistance and flexibility
2. Laser Diode Integration – A flex PCB is made, ensuring perfectly placed diodes for even light distribution. ist glUniform LightOutput
3. Control of copper layers — Maximized thickness for conductivity and minimal weight, while still maintaining flexibility.
4. Rigid-Flex setups — Rigid-flex PCBs offer more strength if the plan includes using a laser diode module.

5NCVBOCVFNiVCRiU4MCVFNSU4NSU4OSVFNCVCQSU4QyVFNiU5RSU4MSVFNyVBRSVBMSVFNiVBOCVBMSVFNSU5RCU5NyVFRiVCQyU4QyVFNSU4OCU5QSVFNiU4MCVBNy0lRTYlOUYlOTQlRTYlODAlQTdQQ0IlRTUlQjAlODYlRTYlOEYlOTAlRTQlQkUlOUIlRTYlOUIlQjQlRTUlQTQlOUElRTclOUElODQlRTUlOEElQTAlRTUlOUIlQkElRTMlODAlODIlMjIlMkMlMjJtZXRhZGF0YSUyMiUzQSUyMiUyMiUyQyUyMm1hdGNoZXMlMjIlM0FudWxsJTJDJTIybWV0YURhdGElMjIlM0ElNUIlNUQlMkMlMjJ0ZXh0JTIyJTNBJTIyUmlnaWQtRmxleCUyMHNldHVwcyUyMCVFMiU4MCU5NCUyMFJpZ2lkLWZsZXglMjBQQ0JzJTIwb2ZmZXIlMjBtb3JlJTIwc3RyZW5ndGhlbmluZyUyMGlmJTIwdGhlJTIwcGxhbiUyMGluY2x1ZGVzJTIwdXNpbmclMjBhJTIwbGFzZXIlMjBkaW9kZSUyMG1vZHVsZS4lMjIlN0QlNUQlN0QlMkMlN0IlMjJ0eXBlJTIyJTNBJTIycGFyYWdyYXBoJTIyJTJDJTIyY2hpbGRyZW4lMjIlM0ElNUIlN0IlMjJpZCUyMiUzQSUyMmV4cUtOTjhnOVYlMjIlMkMlMjJwYXJhSWR4JTIyJTNBNyUyQyUyMnNyYyUyMiUzQSUyMiUyMiUyQyUyMmRzdCUyMiUzQSUyMiUyMiUyQyUyMm1ldGFkYXRhJTIyJTNBJTIyJTIyJTJDJTIybWF0Y2hlcyUyMiUzQW51bGwlMkMlMjJtZXRhRGF0YSUyMiUzQSU1QiU1RCUyQyUyMnRleHQlMjIlM0ElMjIlMjIlN0QlNUQlN0QlMkMlN0IlMjJ0eXBlJTIyJTNBJTIycGFyYWdyYXBoJTIyJTJDJTIyY2hpbGRyZW4lMjIlM0ElNUIlN0IlMjJpZCUyMiUzQSUyMmUzbTFwcGw3eHolMjIlMkMlMjJwYXJhSWR4JTIyJTNBOCUyQyUyMnNyYyUyMiUzQSUyMlBDQiUyMEVsZWN0cmljYWwlMjByZWxpYWJpbGl0eSUyMFRFU1QlMjB0byUyMGd1YXJhbnRlZSUyMHNhZmUlMjBhbmQlMjBzdHJvbmclMjBXZWFyYWJsZXMuJTIyJTJDJTIyZHN0JTIyJTNBJTIyUENCJUU3JTk0JUI1JUU2JUIwJTk0JUU1JThGJUFGJUU5JTlEJUEwJUU2JTgwJUE3JUU2JUI1JThCJUU4JUFGJTk1JUVGJUJDJThDJUU3JUExJUFFJUU0JUJGJTlEJUU1JUFFJTg5JUU1JTg1JUE4JUU1JTkyJThDJUU1JTlEJTlBJUU1JTlCJUJBJUU3JTlBJTg0JUU1JThGJUFGJUU3JUE5JUJGJUU2JTg4JUI0JUU4JUFFJUJFJUU1JUE0JTg3JUUzJTgwJTgyJTIyJTJDJTIybWV0YWRhdGElMjIlM0ElMjIlMjIlMkMlMjJtYXRjaGVzJTIyJTNBbnVsbCUyQyUyMm1ldGFEYXRhJTIyJTNBJTVCJTVEJTJDJTIydGV4dCUyMiUzQSUyMlBDQiUyMEVsZWN0cmljYWwlMjByZWxpYWJpbGl0eSUyMFRFU1QlMjB0byUyMGd1YXJhbnRlZSUyMHNhZmUlMjBhbmQlMjBzdHJvbmclMjBXZWFyYWJsZXMuJTIyJTdEJTVEJTdEJTVE”>PCB Electrical reliability testing to guarantee safe and strong Wearables.

Benefits for End Users

The HairMax Laser Cap uses flexible circuits. This helps both manufacturers and users

• Long-Lasting Performance – Users can rely on consistent treatment sessions without electrical failures.

• Lightweight Comfort – A flexible design ensures the cap can be worn for extended periods.

• Reliable Results – Optimized circuit design ensures every laser diode operates effectively, enhancing hair regrowth outcomes.

Applications Beyond HairMax Laser Cap

The HairMax PowerFlex Laser Cap is a well-known device that uses flexible PCBs. This technology is also found in other wearable medical devices, such as:

• LED light therapy masks

• Portable medical electronics

• Laser therapy helmets

• Compact wellness devices

This shows the versatility of flexible PCB technology across the wearable healthcare electronics sector.

Conclusion

The HairMax Laser Cap uses Flexible PCBs. This shows how flex circuit technology helps create small, light, and reliable wearable devices. From laser diodes to rigid-flex PCBs, these circuit boards are important. They help create medical-grade laser hair growth solutions.

As demand for wearable electronics continues to rise, flexible PCBs will remain the foundation of innovation in healthcare technology.
